High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

Get the High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer from our factory. Perfect for precision spraying in agricultural fields. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Our Advantages
  • Other Products
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
JT40L-404
Liquid Contained
Medicine, Disinfector
Spraying Shape
Hollow Cone
Volume
10liters
Power Supply
Electric
Technics
Module Design
Material
Carbon Fiber + Aluminum Folding Joint
Type
Agriculture Sprayer Drone
Ready to Fly
Yes
Spraying System
10L Tank
Foggin System
Thermal Fogger Device
Battery
2 PCS 17000mAh 6s
Charger
8-Channels 1200W Charger
Coverage on a Single Charge
1.5 Ha
Spray Efficiency
5-6 Ha Per Hour
Low Voltage Alarm
Yes
Fail-Safe Function
Yes
Ab Mode / APP Autonomous Spraying
Yes
Transport Package
Aluminum Packing Case
Specification
sprayer & fogger drone
Trademark
Joyance
Origin
Shandong, China
HS Code
8806949090
Production Capacity
200 Sets Per Month

Packaging & Delivery

Package Size
110.00cm * 90.00cm * 97.00cm
Package Gross Weight
120.000kg

Product Description



Product Description

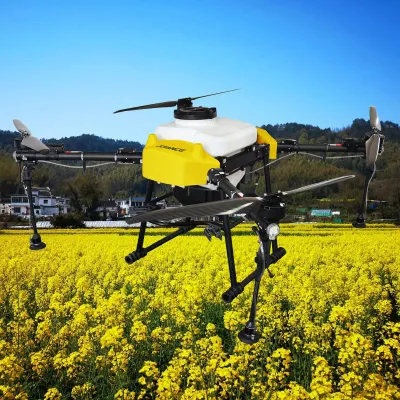

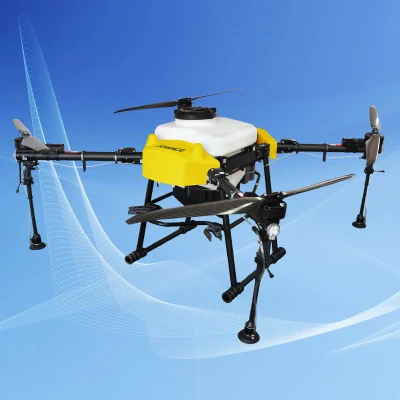

JT40L-404 Agricultural Crop Sprayer Drone with Centrifugal Nozzles

- 40 liters pesticide tank, 70kg fertilizer tank.
- 12m big spraying width, 16 hectares/hour high spraying efficiency.
-  Aviation aluminum alloy & carbon fiber frame, foldable design, durable and light.
- 18s 30000mAh Quick detachable intelligent battery, 10 minutes fast charging.
- Heavy duty brushless motors, waterproof and dustproof, with self cooling system, can work continuously for 12 hours per day.

High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

Product Parameters

Product Name JT40L-404 Agricultural spreader Drone Fly time No-Load Hovering Time 20Min
Water Tank Capacity 40 Liters Full Load Working Time 10Min
Spraying Width 10-12m(above crops 1-3 m)  Weight Self Weight(without battery) 48.4KG (with 1 battery)
Spraying Efficiency 16Ha/hr (work continuously) Full Load Weight 80~100KG
Spraying Speed 10 m/s Size Expand Size 1850*1520*930mm
Smart Battery 18s 30000mAh(≥600 cycles) Fold Size 1050*900*930mm
Product Material carbon fiber + aviation aluminum alloy Packing Size 160*130*120CM
Spraying System 4pcs centrifugal nozzle Charger Model Quick charger 8000W
Wind Resistance 10m/s Charging Time 1pc 10 min(30%-99%, 220V)
Spraying Flow 13L/Min (adjustable) Temperature Battery temperature is below 60°
Motor System Hobbywing Waterproof Level Motor IP68
Flight Control System JOYANCE Whole Drone IP57

Our Advantages

High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

4G RTK antenna reduces magnetic interference,makes flight more stable and safe.
Split frame design, made of high-strength aluminum alloy, 50mm high-rigidity carbon fiber arm, simple structure, stable and durable.
8000W high power fast charger, 10 minutes full charge 1 battery (18s 30000mAh smart battery); 1 charger+2 batteries=continuous work.


High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

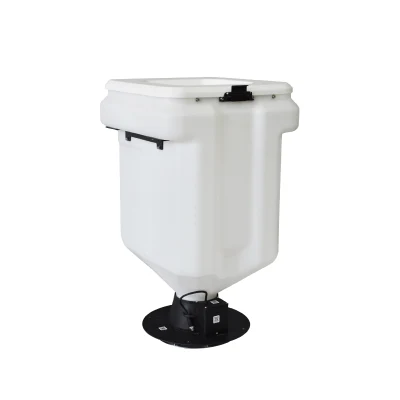

70 liters large capacity fertilizer tank, big payload.
Built-in weighing sensor real-time correction of data deviation during flight.
No material detection function
Judging that there is no material/solution by weighing, and stop flying immediately after the operation is completed to avoid empty flight without material.
Blanking abnormality detection function
Detect the working status in real time, and trigger an alarm when the speed of spreading and feeding is abnormal.
If the spreader is stopped, blocked, the turntable is damaged, and the warehouse cannot be opened, it may lead to abnormal feeding.

High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
Front and Rear two FPV camera, real time crop situation monitoring.
The camera with 2 LED lights can monitor crop situation at day and night, transmit live image from front of drone to the App.
Front and Rear two obstacle radar, detect trees/electric poles in front of drone and stop flying immediately to avoid any accident, makes flight more safe.
Terrain following radar module can detect the angle of a slope and automatically adjust to maintain the same distance with the surface even in mountainous terrain.
The drone has LED indicators on each motor, so the whole drone frame is very clear at night, ensure a safe flight at night.
High pressure Nozzles: 8pcs.
Y type design, no leak spraying
Less drift, high penetration
Droplet size 100~200um
Centrifugal nozzles: 4pcs.
Spray degree 130°
Droplet size 50~200um
With the centrifugal nozzles the drone penetrates thick canopies with oblique spraying, ensuring uniform adhesion of liquid pesticides and increasing the number of droplets by 100%.
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer



Other Products

High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

           JT10L-404QC Sprayer Drone                                                                         JT16L-404QC Sprayer Drone                                         JT30L-606 Sprayer Drone


High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

                    JT30L-404 Sprayer Drone                                                                      JT16L-404HB Hybrid Drone                                               JT Cleaning Drone

Packaging & Shipping



High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer

Company Profile



Shandong Joyance Intelligence Technology Co., Ltd.

JOYANCE is one of the earliest manufacturers of agricultural drones in China, design new products and optimize equipment performance according to the usage habits and working conditions of overseas customers. Our current products are mainly sprayer drones, spreader drones, 16L hybrid drone, cleaning drone, and multi-function drones.

Now we have real users in more than 90 countries from 5 continents, agents in 20 countries, hope to find a way to cooperate with you.



High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer
High Quality Superior Design Helicopter 40L Drone Agricultural Sprayer


FAQ

What Certificates do you have?

CE, FCC, RoHS, ISO 9001. We also have 18 patents

Do you offer ODM/OEM?
Yes, we provide ODM, OEM, white label, etc.
Do you provide warranty and after-sales service?
Yes, we provide 3 year warranty for drone frame, 3~12 months for spare parts. Online technical support is for free all life.

Do you offer training?
Yes, we offer free online training, English & Spanish user manual, operation video and site training in some countries.

What is your payment terms?
T/T, Credit card, online transfer, Paypal. 50% deposit before production, balance before delivery.

What is the delivery time?
After payment, 3~7 days for sample order, 10~20 days for bulk order.

How to buy?
Contact our sales in this page to get quotation and buying guide.

How to be your distributor/dealer/agent?
We are looking for agent all over the world. Contact our sales to talk details.
